stepless shifting

A smart range of hubs for different riders needs.

The Continuously Variable Planetary (CVP) technology forms the foundation of our products.

It enables our automatic shifting to be truly seamless, and smooth manual shifting when changing gear ratio, resulting in a pleasant ride experience.

DISCOVER OUR PRODUCTS
AUTOMATIC MANUAL Hubs CVP Technology
Discover the CVP technology
CVP Technology explained

Bicycle Shifting systems

HUB INTERFACES AND CONTROLLERS

AUTOMATIC

A truly unique experience

The simplest, purest, and most robust automatic transmission today. Shifting becomes seamless, and e-bikes become more pleasant to ride. Riders only need to set up the desired cadence, and the stepless AUTOMATiQ technology will adjust the enviolo system so they can always pedal at the same pace, even up or down hill.

Introducing enviolo automatiq

Integrated system

As part of the “integrated system”, the technology can be merged into the e-bike’s control unit. Simplifying the handlebar and the ride experience.

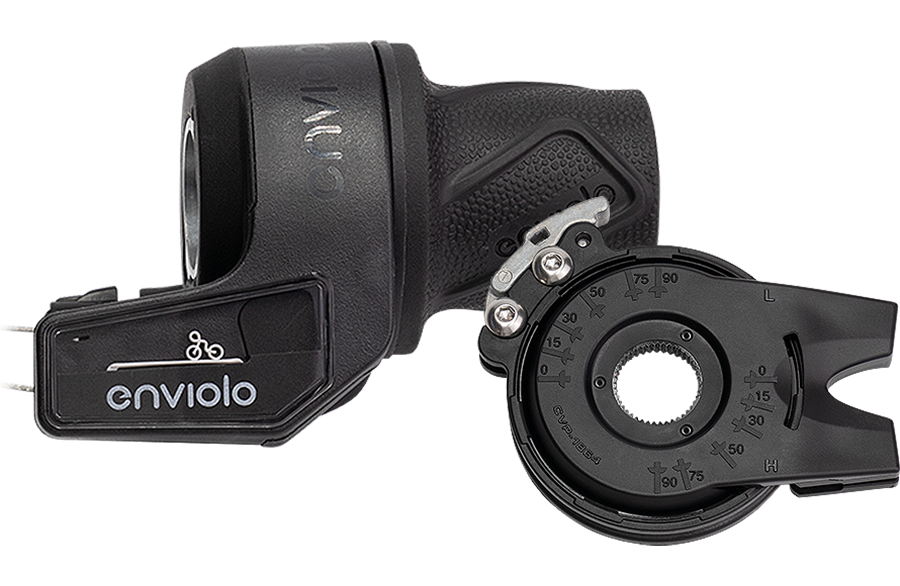

Manual

Smooth, simple and maintenance free

The stepless manual technology brings you the same simplicity, free of the ‘shift shock’ of traditional gears. Riders can focus on the important aspects of a bike ride such as traffic or scenery. No more step changes, locked gears, empty pedalling, or creaking. Just a unique ride feel created by the technology’s ease of use.

Simplicity and comfort

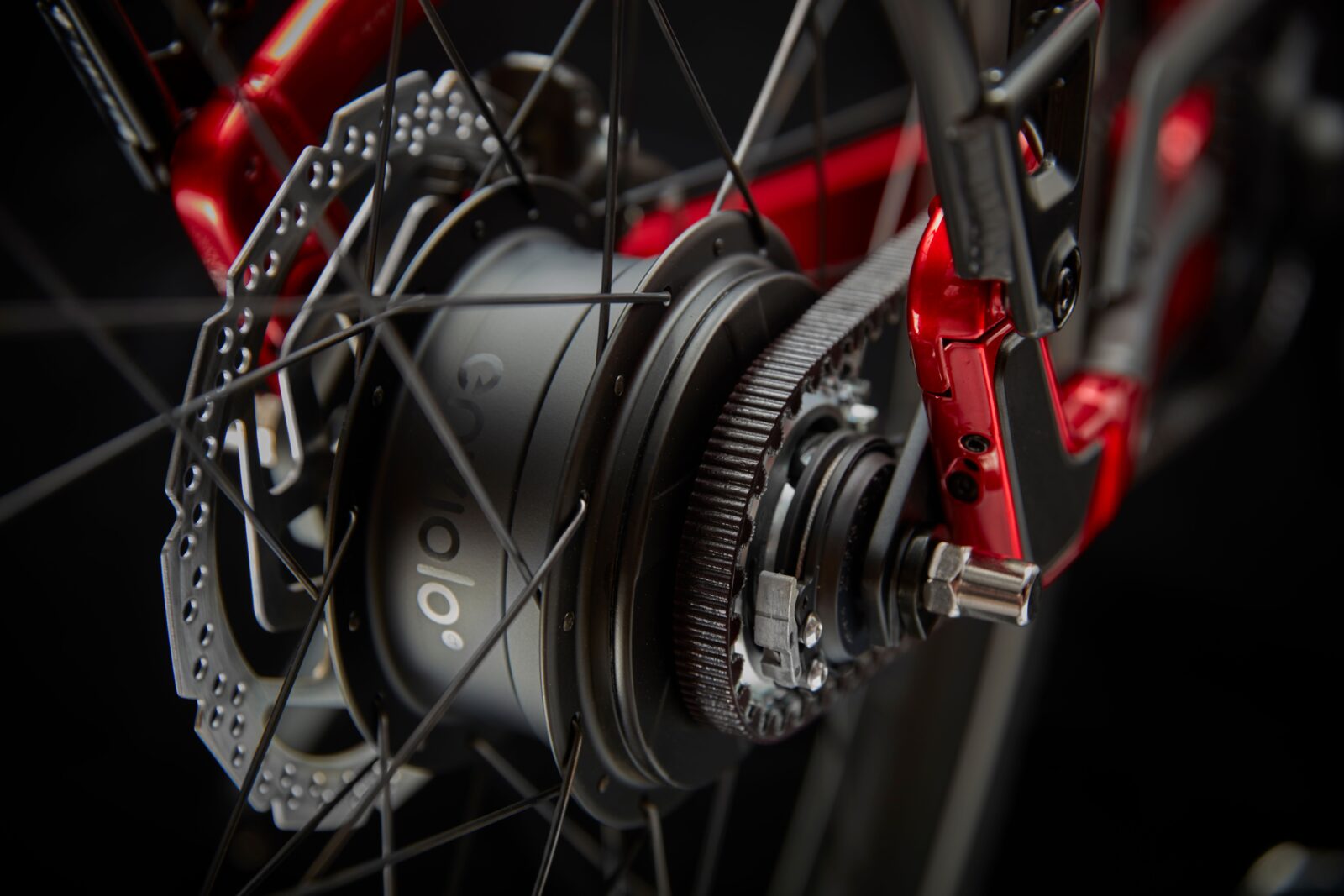

The system is low maintenance and enables long-lasting bikes, especially in a combination with a belt drive. The perfect fit for the new rider generation who are focused on simplicity and comfort. The enviolo stepless manual technology was created based on user cases to serve specific rider needs, and consists of specifically designed internal gear hubs and matching controllers.

AUTOMATIC FEATURES

exclusive to the automatic system

Automatic shifting

The “set it and forget it” adds an extra layer of safety and comfort to your ride. The system will keep you in the preset cadence for a comfortable ride, taking any changes in your surroundings into account.

Stoplight function

During a stop and go situation your bike will automatically be put in under drive which allows you to start with ease and quickly return to your preset cadence. This allows you to be the first to leave the traffic lights or to continue your journey at a slower pace.

Pedal at your desired cadence

Preset your preferred cadence in the app or interface and the program will automatically shift at your desired speed.

Extended product lifetime

Riding in the optimal ratio range means that the hub is never being used in the wrong way. This prevents wear and extends product lifetime.

Mobile app

The enviolo app offers different customer benefits, the app enables the latest AUTOMATiQ software updates over the air or it can be used to personalize rider settings

Bluetooth connection

Connect to the shifter and app via Bluetooth. The wireless connection also allows easy and faster assembly time as no cable routing is needed for the setup.

Standard features

both automatic and manual systems

Stepless shifting

Stepless shifting enables a continuous motion between the gear ratios allowing you to cycle at your exact desired cadence. Switching gears is a thing of the past

Effortless shifting, even under load

enviolo lets you change gear ratio in any ride condition without ever having to stop pedaling or backpedal.

Maintenance free

enviolo’s enclosed hub offers protection against external influences which increases durability and extends product lifetime.

Greater gear ratio change

Our 310% – 380% ratio range allows rides in any type of environment. Ride up a hill with ease on a cargo bike or go at high speed for a sportive ride. There’s an ideal ratio for every rider.

Near silent

enviolo’s hubs offer a near silent and smooth ride. No more sounds of a jumping chain or clicking of the controller, just the sounds of your surroundings.

BICYCLE Hubs & GEARBOX

POWERED BY CONTINOUSLY VARIABLE PLANETARY TECHNOLOGY

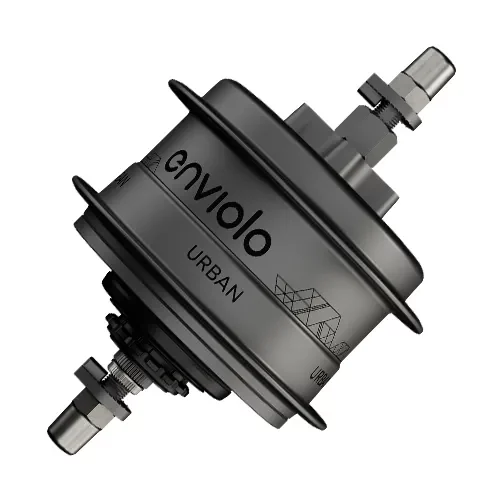

The URBAN hub is a cost-effective yet high-quality hub aimed at the mid-market e-bike segment and is the ideal solution for shorter daily trips in urban areas.

Average Ratio range
256% (0.625 to 1.6)
Max gross vehicle weight
140kg
Max torque (@140kg)
60Nm
Dropout variant
Solid M10, Modular M8
Dropout width
135mm, 148mm
Spoke version
32h, 36h
Brake options
6-bolt disc

The CITY hub is designed to meet the demands of the urban rider. Light vehicles which help you navigate through busy city roads, bike lanes and crossings.

Average Ratio range
310% (0.55 – 1.7)
Max gross vehicle weight
160kg
Max torque (@160kg)
75Nm
Dropout variant
Solid M10, Modular M8
Dropout width
135mm, 148mm
Spoke version
32h, 36h
Brake options
6-bolt disc

The TREKKING hub is designed to offer performance for longer rides, smoother curves which riders will come across on country side roads or other versatile environments.

Average Ratio range
380% (0.5 – 1.9)
Max gross vehicle weight
180kg
Max torque (@180kg)
90Nm
Dropout variant
Solid M10, Modular M8
Dropout width
135mm, 148mm
Spoke version
32h, 36h
Brake options
6-bolt disc

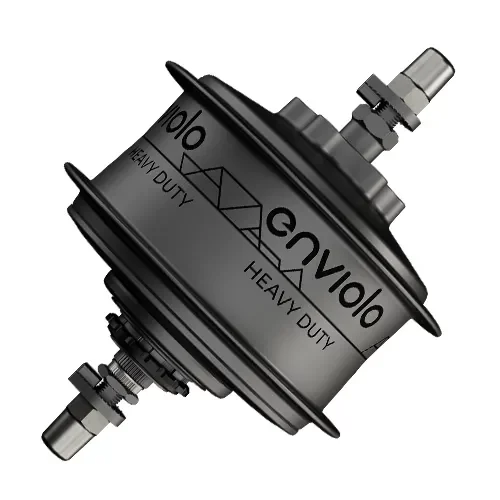

“The HEAVY DUTY hub is designed to perform under higher load and weight, ideal for transporting cargo on longer distance trips.

Average Ratio range
380% (0.5 – 1.9)
Max gross vehicle weight
250kg
Max torque (@160kg)
100Nm
Max torque (@250kg)
85Nm
Dropout variant
Solid M10, Modular M8
Dropout width
135mm, 148mm
Spoke version
32h, 36h
Brake options
6-bolt disc

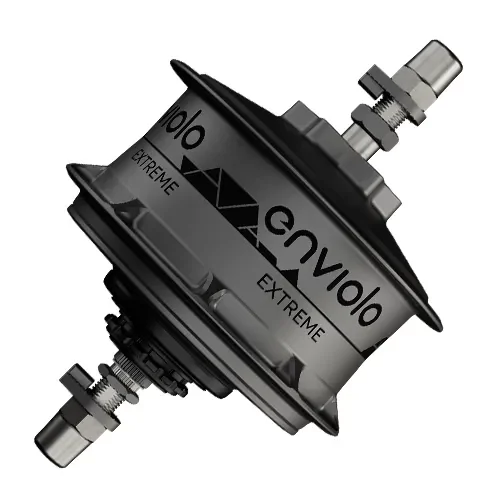

The EXTREME hub is optimized for businesses that bring their heavy cargo load (max. 300kg) to the next level. The perfect sustainable and maintenance-free cargo solution.

Average Ratio range
380% (0.5 – 1.9)
Max gross vehicle weight
300kg
Max torque (@300kg)
100Nm
Dropout variant
Solid M12, Modular M8
Dropout width
135mm, 148mm
Spoke version
36h
Brake options
6-bolt disc

The EXTREME hub is optimized for businesses that bring their heavy cargo load (max. 500kg) to the next level. The perfect sustainable and maintenance-free cargo solution.

Average Ratio range
380% (0.5-1.9)
Max gross vehicle weight
500kg
Max torque (@300kg)
100Nm
Max torque (@500kg)
85Nm
Dropout variant
Solid m12
Dropout width
135mm
Spoke version
n/a
Brake options
n/a

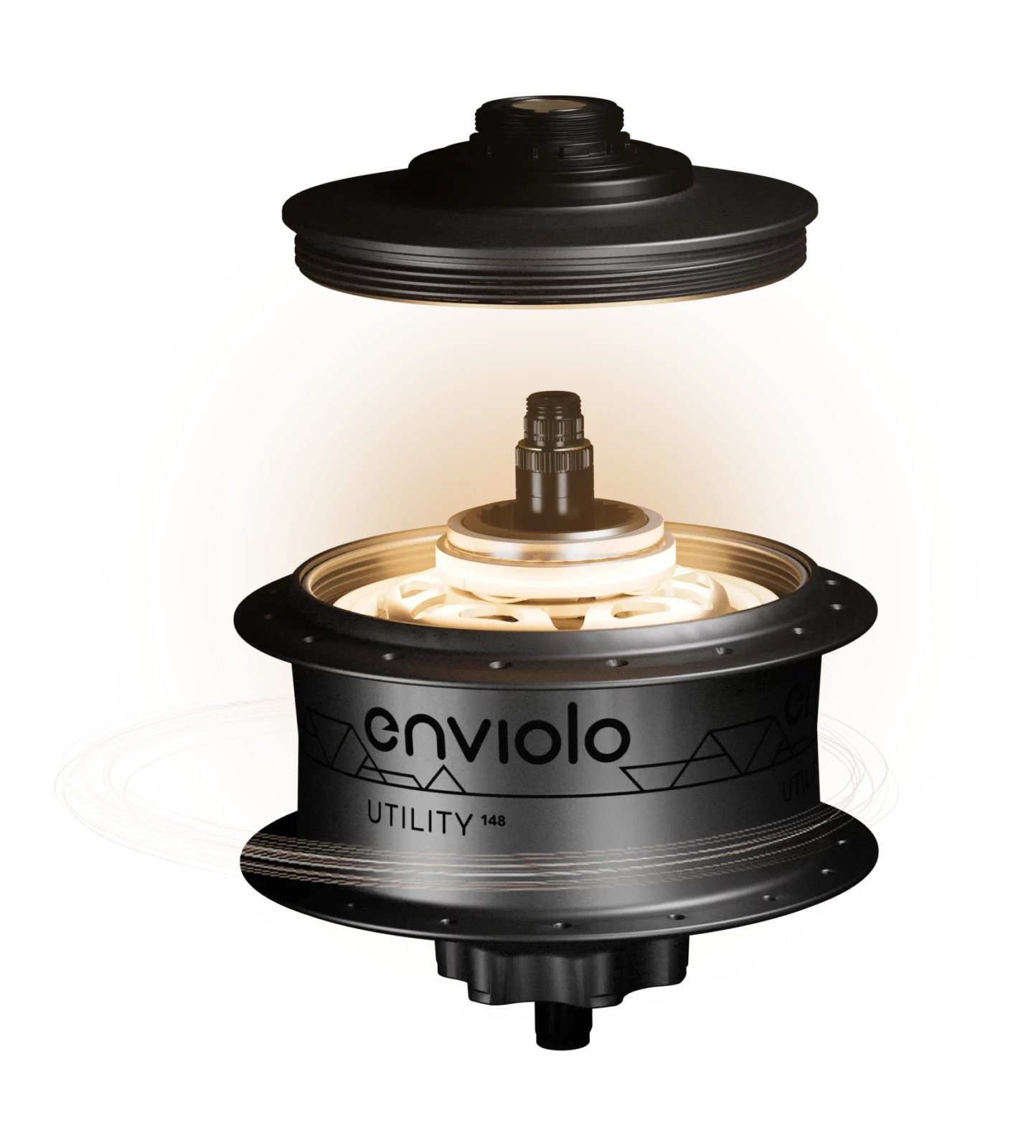

Inside the enviolo CVP continuous variable planetary hub



Want to know more?

See our Product Specifications page for more technical info.

Are you an OEM and are you interested to have our product on your bike? Get in touch with our Business Development team.
